Project Background

EngineeringPeople partnered with the U.S. Army to redesign an existing military flatrack used for transportation in demanding loading conditions. The objective was to improve structural strength while reducing overall weight and simplifying manufacturing — all within a shortened timeframe driven by inventory shortages. The project required reverse engineering the original platform, optimizing the structure through finite element analysis (FEA), and delivering a production-ready prototype capable of supporting mission-critical transport operations.

Services and Solutions

EngineeringPeople delivered the following key services and solutions:

01

Reverse Engineering

Converted legacy 2D drawings into accurate 3D solid models to establish a modern engineering foundation for redesign and analysis.

02

Structural Optimization

Redesigned the flatrack structure to improve strength-to-weight performance while maintaining required load capacities.

03

Finite Element Analysis (FEA)

Performed advanced FEA simulations to validate structural integrity and optimize the design for multiple loading conditions.

04

Weight Reduction Engineering

Reduced the overall system weight by approximately 330 pounds while preserving operational durability and transport performance.

05

Manufacturing Simplification

Reduced piece parts and sub-assemblies to simplify manufacturing, improve serviceability, and increase reusable components.

06

Prototype Development

Delivered a prototype design capable of carrying 24,600 lbs while meeting military transportation requirements ahead of schedule.

Technical Challenges

Accelerated Timeline

The redesign needed to be completed within a compressed schedule due to inventory shortages and operational demand.

Strength vs. Weight Optimization

The structure had to become lighter without compromising durability or load-carrying capability under varying transportation conditions.

Legacy System Modernization

The original design relied on legacy 2D documentation, requiring reverse engineering and digital model reconstruction before optimization work could begin.

Approach

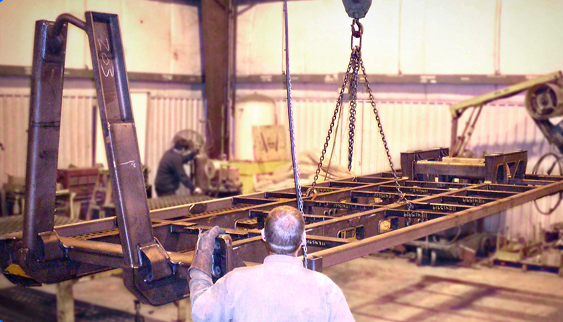

Reverse Engineering & Digital Modeling

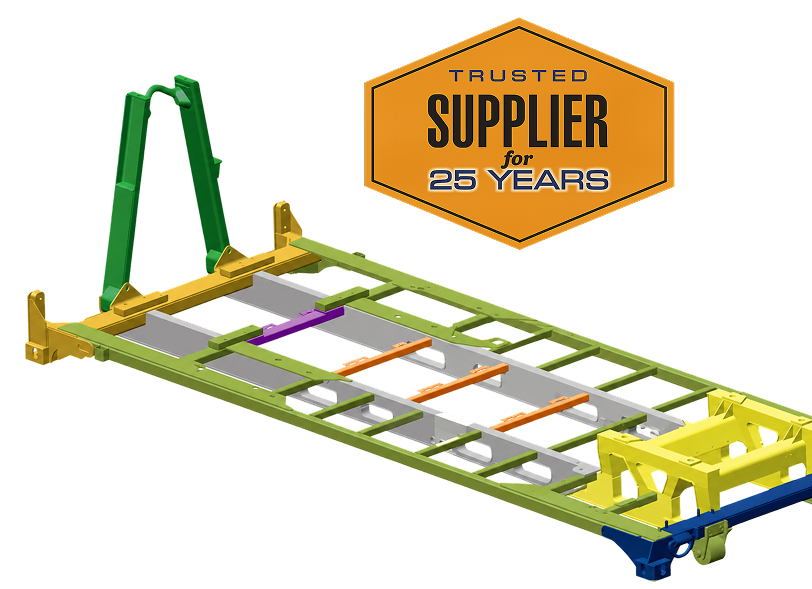

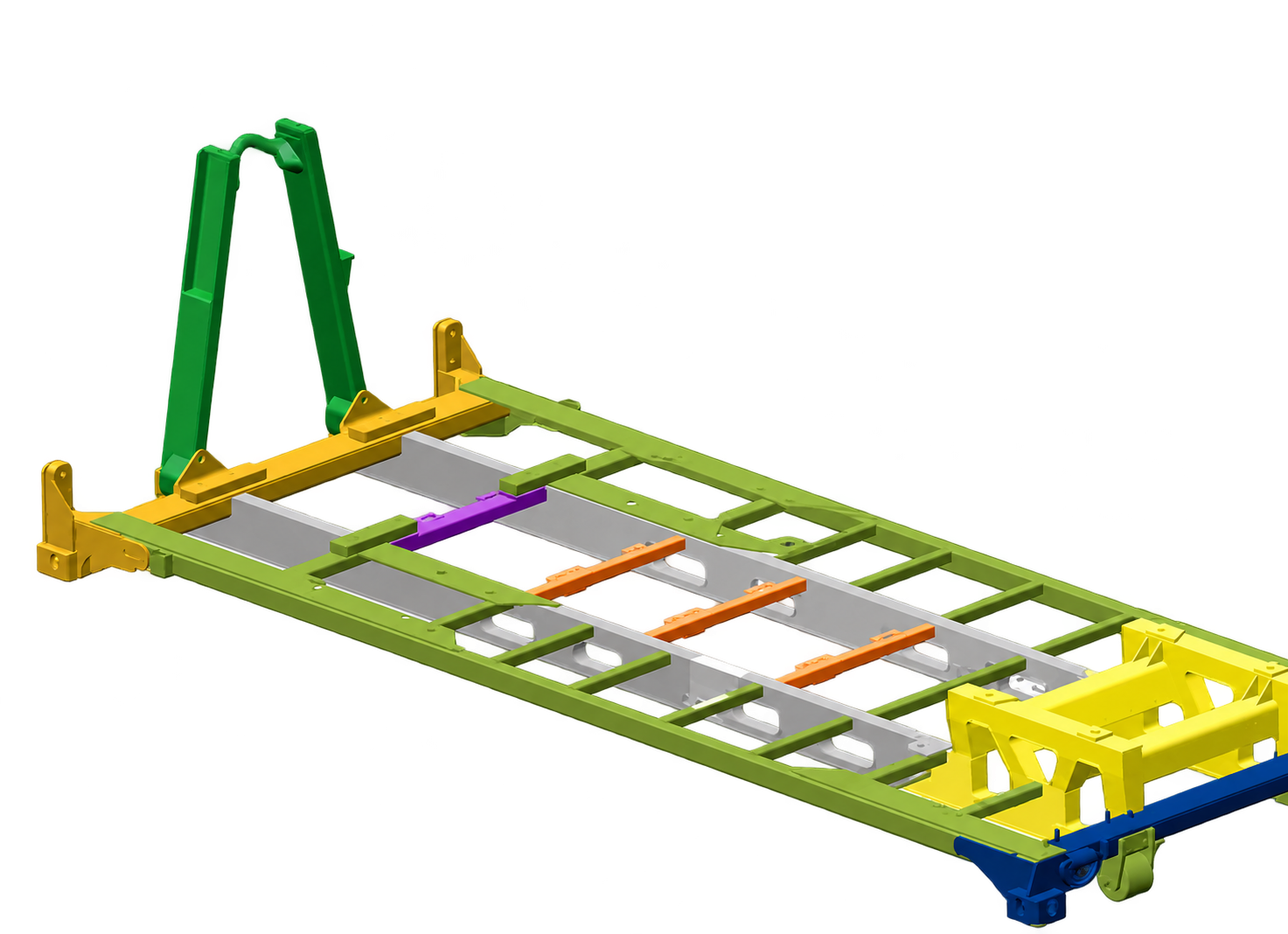

EngineeringPeople reverse engineered the existing flatrack system, converting original 2D drawings into 3D CAD models and generating initial FEA results to establish baseline performance metrics.

Structural Redesign & Analysis

The flatrack was redesigned to meet updated strength and weight objectives. EngineeringPeople performed iterative FEA testing to optimize the structure and validate performance requirements across multiple loading conditions.

Prototype Delivery

EngineeringPeople delivered a lightweight prototype that reduced total weight by 330 pounds while maintaining a payload capacity of 24,600 lbs. The updated design also reduced manufacturing complexity through fewer parts and sub-assemblies.

Build Stronger,
Lighter Mission-Critical Systems

Whether you need legacy equipment modernized, structural weight reduction, or accelerated product redesign, EngineeringPeople helps defense and industrial organizations deliver high-performance engineered solutions on schedule.
